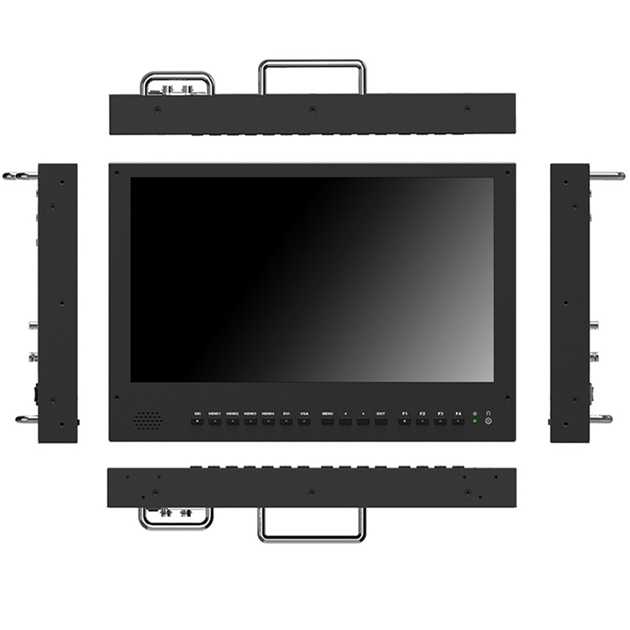

CK1560S & CK2800S
4K Broadcast Director Monitor

This series is 4K broadcast monitors suitable for director and filmmakers, which developed specifically for FHD/4K/8K cameras, switchers and other signal transmission devices. Features 3840×2160 Ultra-HD native resolution screen with excellent quality and good color reduction. Support 3G-SDI and 4×4K HDMI signals input and display; And also supports Quad views splitting from different input signals simultaneously, which providing a efficient solution for applications in multi-camera monitoring.

FEATURES

*15.6”, 330cd/m2 Brightness
* 28”, 330cd/m2 Brightness
* 10Bit IPS 3840x2160 Resolution Panel
* 1000:1 High contrast

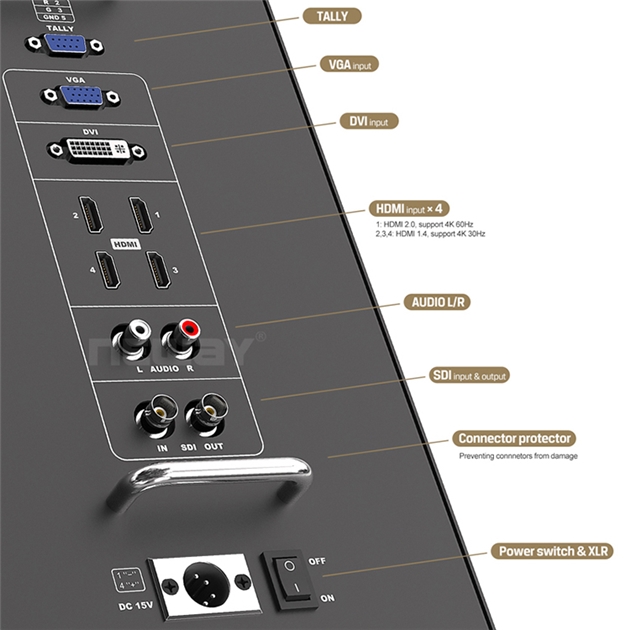

* 3G-SDI, HDMI supports 4K 60Hz, 30Hz
* Support 6U Rack Mount Method
* Wireless HDMI(optional)

•

  3840×2160
  Resolution

•

  3G-SDI
  4K-HDMI

•

  HDR
  3D-LUT

•

  Quad View
