FEATURES

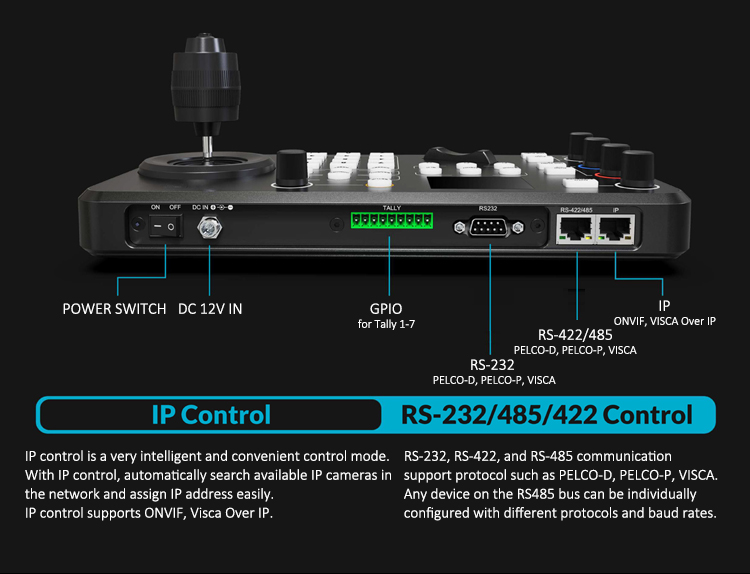

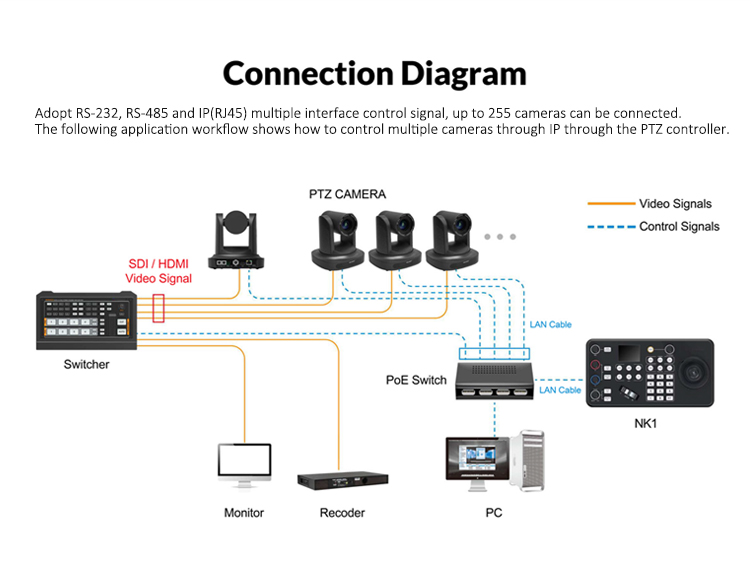

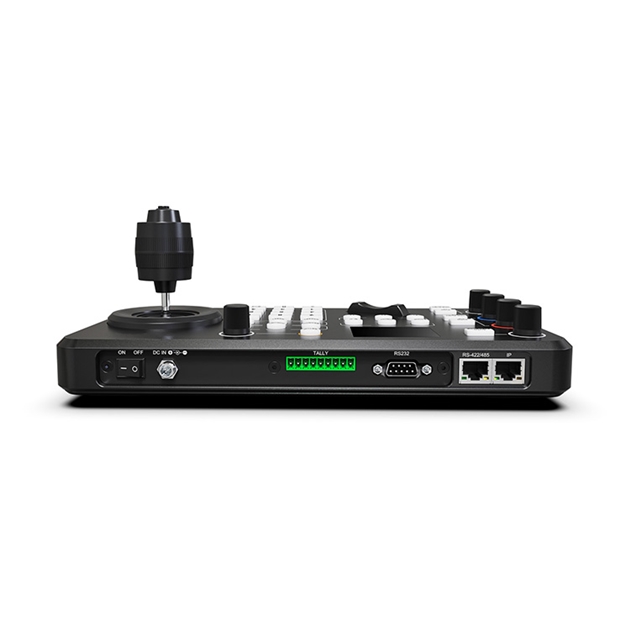

* Cross protocol mix control with IP/ RS 422/ RS 485/ RS 232
* Control protocol by VISCA, VISCA Over IP, Onvif and Pelco P&D
* Control up to 255 IP cameras on one single network

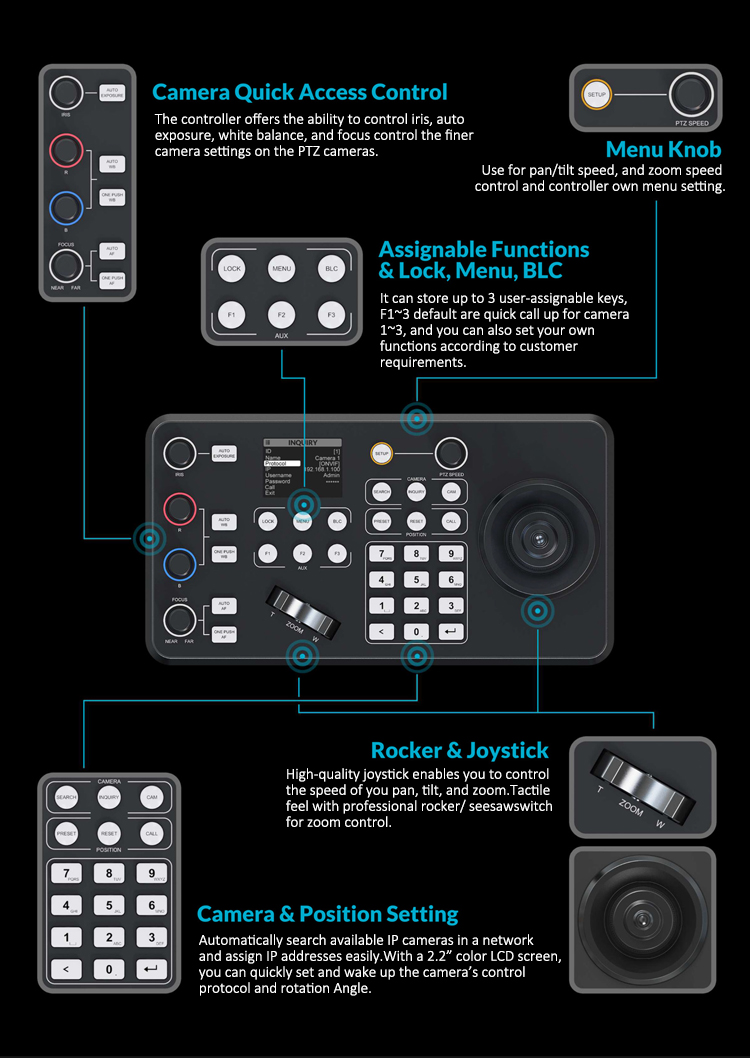

* 3 camera quick call up keys, or 3 user assignable keys
* Tactile feel with professional rocker/seesaw switch for zoom controlling
* Auto search available IP cameras in one network and assign IP addresses easily
* Multi color key illumination indicator directs operation to specific functions
* Ally GPIO output for indicating the camera be currently controlled

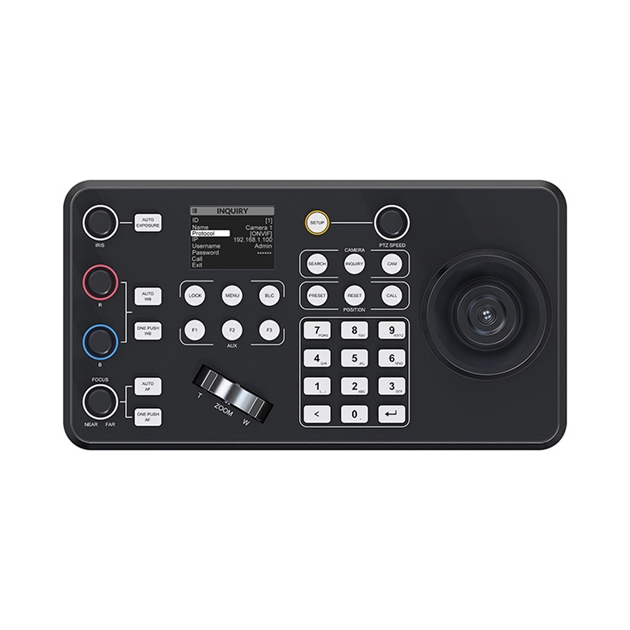

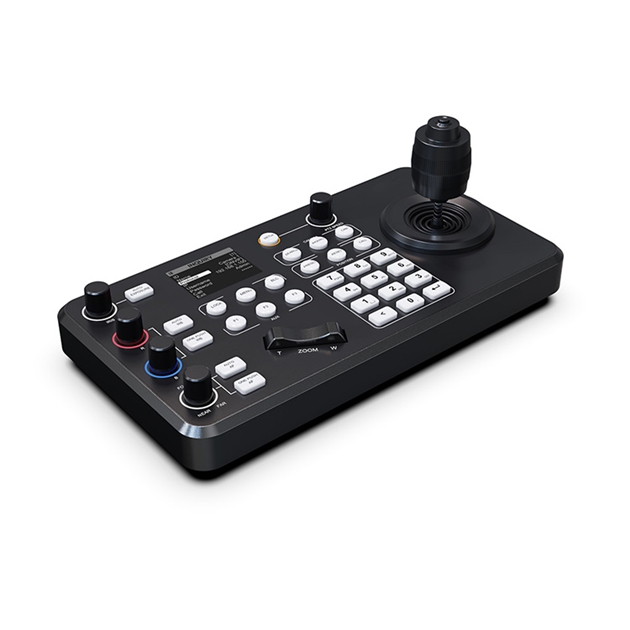

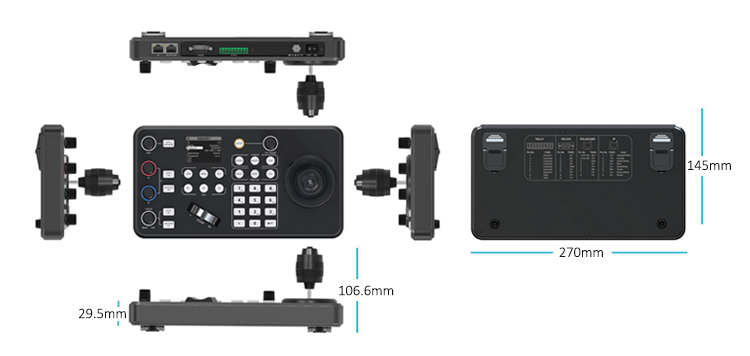

* Aluminum alloy housing with 2.2 inch LCD display, joystick, 5 rotation button

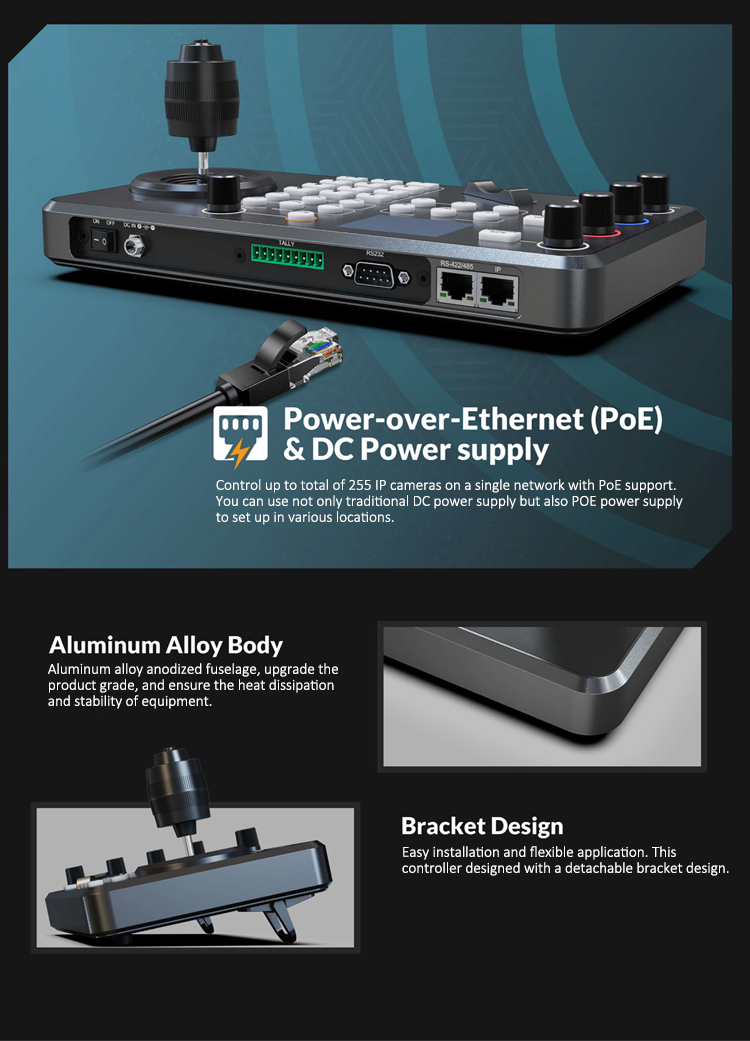

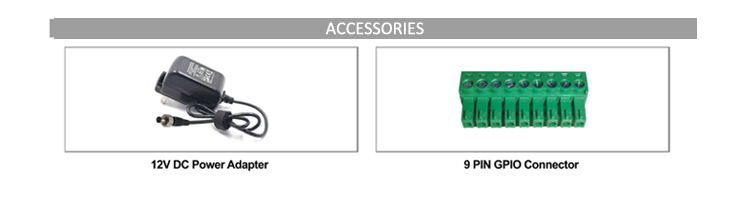

* PoE and 12V DC power supplies
